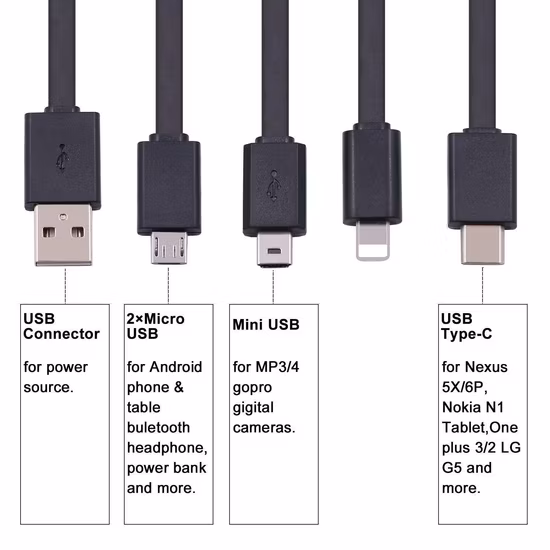

Low Cost High Efficient Electrical USB Data Cable Type-C Cable Automatic Twisting Machine Bunching Machine Stranding Machine

Basic Info

Model NO.	NHF-500
Power	15-20 HP
Speed	Max 800rmp
Inlet Cable	1-5mm
Line Speed	75 M/Min
Machine Specification	500
Painting	Customzied
Motor Brand	Siemens
Transport Package	Wooden Case
Trademark	NHF
Origin	China
HS Code	8479400000
Production Capacity	240

Product Description

Low Cost High Efficient Electrical USB Data Cable Type-C Cable Automatic Twisting Machine Bunching Machine Stranding Machine

Product Description

Application

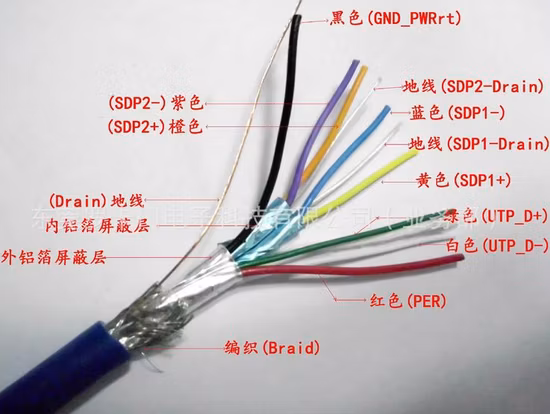

300-630mm high speed twisting machine is suitable for the stranding of enameled wireand copper wire of HDMI cable,computer traverse cable,head-phone cable,mobile cable,net cable,power cable,pvc wire,etc.

Model No.	NHF-500
Diameter of single wire	0.08-0.45 mm
Stranded cross-sectional area	0.073-2.5 mm²
Rotation speed	3000 RPM
Stranding pitch	4.22-39.64 mm
Main motor	AC 5.5 KW
Stranding direction	S/Z
Tension control	Take-up tension controlled by magnetic powder clutch
Spool loading and unloading	Hydraulic lifting
Noise	About 75 db

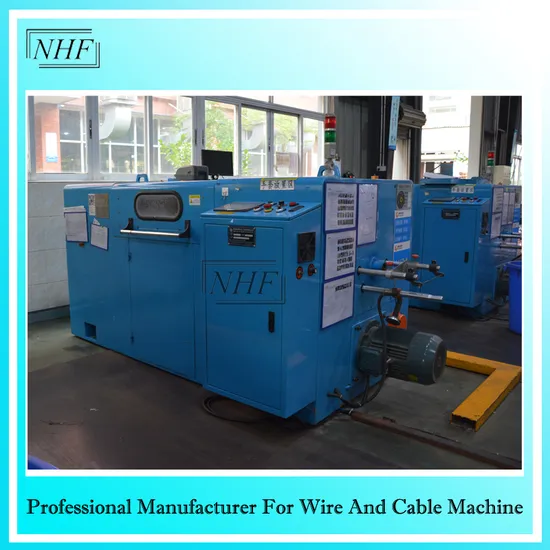

Machine DetailsTechnical parameters

Machine type	NHF-300A	NHF-300B	NHF-500	NHF-630
Single wire diameter	Φ0.05-0.14mm	Φ0.08-0.28mm	Φ0.08-0.45mm	Φ0.16-0.63mm
Stranding cross-section area	0.005-0.035mm2	0.035-0.937mm2	0.05-3.0mm2	0.8-6.7mm2
Stranding pitch	1.9-17mm	4.36-17mm	4.22-39.64mm	11.15-60.24mm
Volume of loading copper(Max.)	30kg	30kg	250kg	400kg
Twist arch speed(Max.)	3000-4000rpm/min	3000-4000rpm/min	2200-3000rpm/min	1800rpm/min
Stranding direction	S/Z left or right free option
Automatic stop	1. Automatic brake for inside and outside wire broken
	2. Automatic meter-counting send signal to inform when set meter is reached
Bearing	Main bearings from Sweden, subsidiary bearings from Japan
Main motor power	2HP frequency control	5HP frequency control	5HP frequency control	7.5HP frequency control
Noise index	About 70dB	About 75dB	About 75dB	About 75dB
Take-up shaft	Φ250mm,Φ300mm	Φ250mm,Φ300mm	Φ300mm,Φ400mm	Φ500mm,Φ630mm

Package

Our Services

Pre-sale Services:1) Spot investigation and professional guiding suggestions;2) Equipment configuration, model selection reference and technical consultation;3) Onestop service for investment equipment, product developing, new materials researching and personnel training.Sale Services:1) Invite customers to inspect and take trials of finished machines;2) Provide the training of the maintenance knowledge;3) Improve the design to the operator's requirements.After-sale Services:1) Regular maintenance and product tracking service;2) Cost price for required parts in lifelong period;3) Provide quality and efficient after-sale service life long time.

About us

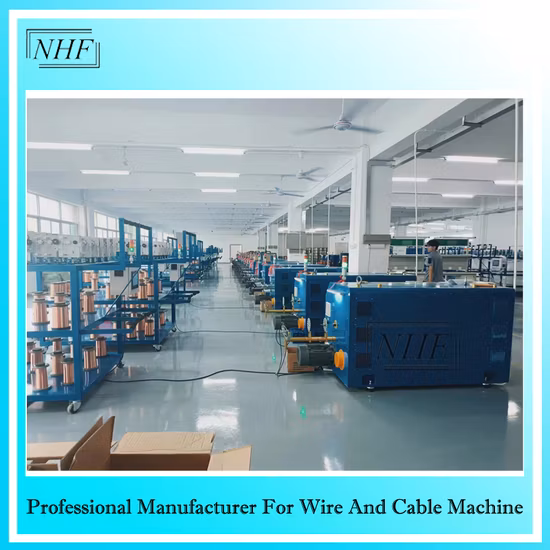

Dongguan NHF Machinery Specializes in manufacturing wire and cable machinery. We offer high quality wire & cable machinery, located in Dongguan, China, We are one of professional manufacturers and exporters of that is concerned with the design, development and production of wire and cable machinery. In the professional field, our companies is according to the actual needs of customers, continuous improvement in technology.We produce and saleWire & cable extrusion linesWire & cable twisting machinesWire & cable taping machinesWire & cable coiling machinesWire & cable complete production proposalWire & cable machine accessoriesWe have rich experience in designing and making wire and cable machinery. Especially, we are good at customized design, technical solution and manufacture.We are a very professional and famous factory in the field of wire and cable machinery, set up by a team of excellent engineers who have experience of nearly 20 in this field. Our highly skilled professionals take the time to get to know you and your business, resulting in a comfortable working relationship with you and a clear understanding of your needs, this enables us to offer you customized, comprehensive, low cost solutions that meet your needs so you don′ T have to compromise. We are able to supply a wide range of wire and cable equipment as well as all the accessories in the industry. Our product has been recognized by customers and has a good reputation in the wire and cable machinery industry.With an old-fashioned commitment to customer satisfaction as our main principle, NHF has been continuously laying efforts on the product development and innovation. We place our prior emphasis on customer′ S needs and technical innovation, always absorbing the advanced international technology. It enables us to provide high-quality products and services for our customers.We will work hard and look forward to your sincere cooperation to jointly create new glories.



Our Customers

FAQ
1) Are you a manufacturer or trading company?We are a manufacturer with more than 17 years manufacturing experience in cable machinery, and we have production workshop and office space.2) How can we get to your factory to see the machines works?Address: No36Houhu road,Humen Town, Dongguan City,Guangdong Province,China We are near to Shenzhen Baoan International airport within 40 mins;We are close to Guangzhou Baiyun Airport for 1.5-2 hours.
