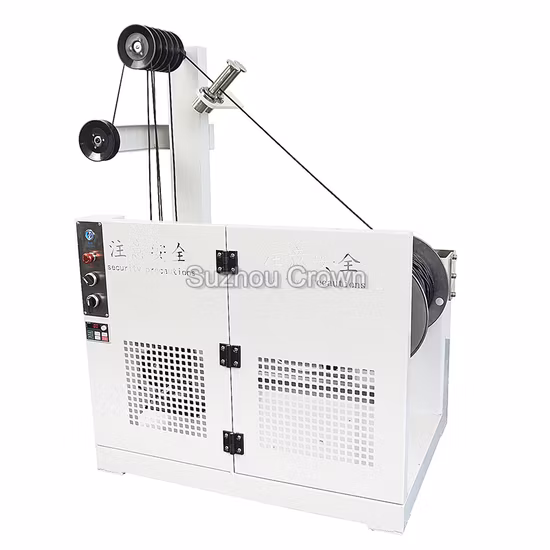

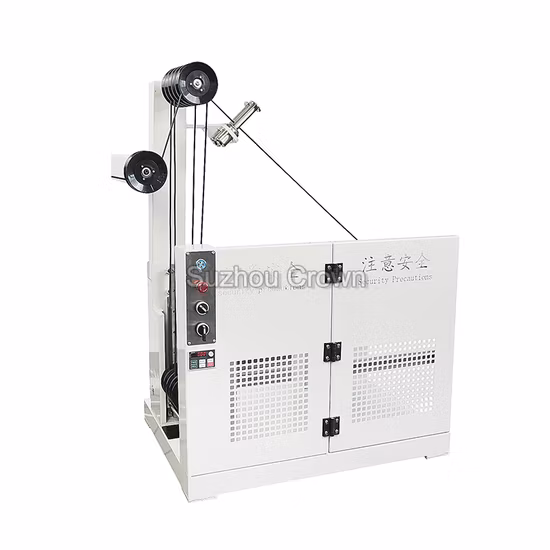

Automatic Cable Wire Prefeeder Wire Pay-off Machine Cable Feeding Machine Electric
Basic Info
| Model NO. | WL-F380 |
| Automatic Grade | Automatic |
| Installation | Vertical |
| Driven Type | Electric |
| Mould Life | Cable Feeder Machine |
| Model | Wl-F380 |
| Display Mode | Digital Tube |
| Application | Wire, Cable... High Speed Auto Feeding |
| Wire Type | Electric Wire, Cable, PVC, etc.with Reel |
| Wire Range | 0.5-10 Square Millimeter |
| Feeding Speed | 0-4m/S |
| Catheter Diameter | Maximum Dia.18 |
| Reel Diameter | Maximum 600mm |
| Voltage | AC110c/220V 50/60Hz |
| Load-Bearing | 60kg |
| Induction Type | Proximity Switch, Multi-Speed. |
| Drive Mode | Inverter + Motor + Speed Reducer |
| Weight | 75kgs |
| Dimensions | 75*40*110cm |
| Transport Package | Wooden Case |
| Specification | 75*40*110cm |
| Trademark | Crown |
| Origin | Kunshan |
| HS Code | 8428399000 |
| Production Capacity | 0-4m/S |
Product Description
Cable prefeeding machine wire feeder machine
Product description| Model | WL-F830 |
| Display mode | Digital tube |
| Function | Wire, cable... High speed auto feeding |
| Wire Type | Electric wire, Cable, PVC, etc.with reel shaft |
| Wire range | 0.5-10 square millimeter |
| Feeding speed | 0-4M/s |
| Catheter diameter | Maximum Dia.18 |
| Reel diameter | Maximum 600mm |
| Load-bearing | 60KG |
| Weight | 75kgs |
| Dimensions | 75*40*110cm |
| Induction type | Proximity switch, multi-speed. |
| Drive mode | Inverter + Motor + Speed Reducer |
| Remarks | Special cables can be customized, please send samples for testing |
Features:
| Description: |
| 1. This machine is used for wire cutting and stripping machines. |
| 2. When the computer wire stripper works, the tension wheel moves accordingly, and the potentiometer rotates through the sprocket, and the potentiometer feeds back the signal to the inverter to control the speed of the pay-off motor, thereby controlling the speed of the line to be synchronized with the computer stripping machine. |
Packing & Shipping:
For small and light products packed by cartons,for large and heavy products packed by wooden
Product show:
Machine processing samples:
Related products:
FAQ:
| 1.How to order? |
| Please contact my Email for much more details, you can place order with us directly or through alibaba online transcation after confirmation. |
| 2.What's your payment terms? |
| We accept trade assurance order, T/T,L/C, western union, Paypal etc. |
| 3.How long does the production time? |
| Generally 3~7 days, if there's customized model or other request will be adjusted. |
| 4.How do you packaged the products? |
| Small size machine, we will package it in standard neutral carton. Larrge size machine, we will package it in standard wooden cases. |
| 5.What can you provide for us? |
Our service We provide: · Best products and factory price. |
